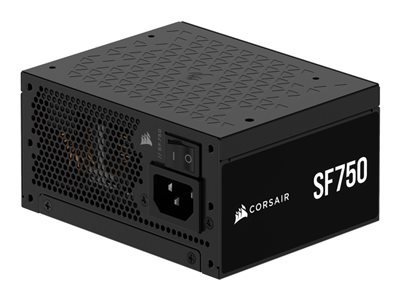

SF SERIES (2024), SF750, 750 WATT, SFX, 80 PLUS PLATINUM, FULLY MODULA
SF SERIES (2024), SF750, 750 WATT, SFX, 80 PLUS PLATINUM, FULLY MODULA
- Price:
$220.99
- Availability:
- Mfr #: CP-9020284-NA
- UNSPSC #: 39121004
- Item #: 011894883
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Cable ties, SFX to ATX bracket |
| Cables Included | AC power cable ¦ Power 24 pin ATX modular cable 1 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 1.3 ft ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 1.3 ft ¦ 16-pin 12VHPWR power modular cable 1.3 ft ¦ 2 x power 15 pin SATA cable 1.5 ft ¦ 4 pin power modular cable 1 ft |
| MTBF | 100,000 hours |
| Cooling System | 92 mm fan |
| Features | Overheat protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, Cybenetics Platinum |
| Compliant Standards | EMC, RoHS, UKCA |
Dimensions & Weight
| Width | 4.9 in |
| Depth | 3.9 in |
| Height | 2.5 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 7 years |
General
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.31/ EPS12V 2.92 |
| PSU Form Factor | SFX |
| Localization | North America |
Power Device
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 1 x 12VHPWR |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
