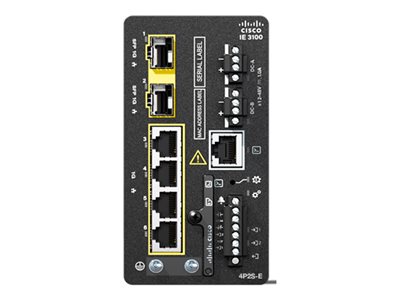

- Product Description Cisco Catalyst IE3100 Rugged Series - Network Essentials - switch - 6 ports - managed
- Device Type Switch - 6 ports - managed
- Subtype Gigabit Ethernet
- Ports 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- Power Over Ethernet (PoE) PoE+
- PoE Budget 120 W
- Capacity Queues: 8 ¦ IGMP groups: 512 ¦ VLANs supported: 256 ¦ Indirect IPv4 routes: 2000 ¦ STP instances: 128
- MAC Address Table Size 8000 entries
- Routing Protocol IGMP, IGMPv2, IGMPv3, STP, static IP routing
- Remote Management Protocol DHCP, Modbus, HTTP, HTTPS, MIB, Syslog, NETCONF, RESTCONF, IPv4, IPv6, YANG, TFTP, ICMP, Telnet, SNMP, SNMP 1, SNMP 2, SNMP 3, NTP, RMON
- Features MRP, REP, CIP support, PROFINET, fanless, surge protection, shock-resistant, vibration-proof, PTP, Rapid PVST+, PVST+, RPVST, RSPAN, SPAN, FSPAN, Storm Control, VTP v.2, VTP v.3, EtherChannel support, L2TP support, Q-in-Q tunneling, IGMP snooping, MLD snooping, EEM, iPnP, DHCPv6 guard, router advertisement guard, NEAT, DHCP snooping, DAI, AAA, SCP, QoS, UDP support, TCP support, BOOTP support, FTP support, DiffServ support
- Compliant Standards IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
- Power Redundancy Optional
- Dimensions (WxDxH) 2.6 in x 4.7 in x 5 in
- Weight 32.1 oz
- Manufacturer Warranty 5-year warranty
|
