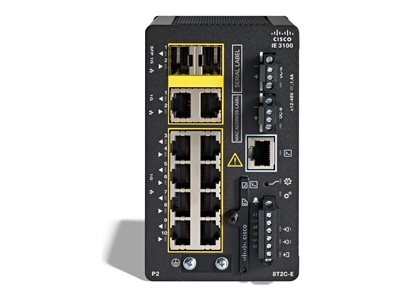

IE3100 W/8GE POE+ 2GE COMBOFIXED SYSNETWORK ESSENTIALS
IE3100 W/8GE POE+ 2GE COMBOFIXED SYSNETWORK ESSENTIALS
- Price:
$4,246.99
- Availability:
- Mfr #: IE-3100-8P2C-E
- UNSPSC #: 43222631
- Item #: 011919895
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 682,250 hours |
| Compliant Standards | X.509 v3, ANATEL, AS/NZS CISPR 24, AS/NZS CISPR 32 Class A, CNS 13438, CSA C22.2 No. 213, DNV, EN 50121-3-2, EN 50121-4, EN 55032 Class A, EN 60079-0, EN 60079-15, EN 60079-7, EN 61000-4-10, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61326, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60079-0, IEC 60079-15, IEC 60079-7, IEC 61850-3, IEC 62368-1, IEC/EN 61010-2-201, IEEE 1613, IP30, IP54, KN32, KN35, NEMA TS-2, RCM, RoHS, TEC, UL 121201, UL/CSA 60079-0, UL/CSA 60079-15, UL/CSA 61010-2-201, UL/CSA 62368-1, UL/CSA60950-1, VCCI Class A, EN 60068-2-1, EN 60068-2-2, EN 61131, IEC 60068-2-14, IEC 60068-2-3, IEC 60068-2-30, EN 61373, IEC 60068-2-27, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-64, WEEE |
Dimensions & Weight
| Width | 3 in |
| Depth | 5.1 in |
| Height | 5 in |
| Weight | 2.29 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 5 years - response time: 10 days |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
General
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP/RJ-45 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Capacity | Queues: 8 ¦ IGMP groups: 512 ¦ VLANs supported: 256 ¦ Indirect IPv4 routes: 2000 ¦ STP instances: 128 |
| MAC Address Table Size | 8000 entries |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, STP, static IP routing |
| Remote Management Protocol | DHCP, Modbus, HTTP, HTTPS, MIB, Syslog, NETCONF, RESTCONF, IPv4, IPv6, YANG, TFTP, ICMP, Telnet, SNMP, SNMP 1, SNMP 2, SNMP 3, NTP, RMON |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | MRP, REP, CIP support, PROFINET, fanless, surge protection, shock-resistant, vibration-proof, PTP, Rapid PVST+, PVST+, RPVST, RSPAN, SPAN, FSPAN, Storm Control, VTP v.2, VTP v.3, EtherChannel support, L2TP support, Q-in-Q tunneling, IGMP snooping, MLD snooping, EEM, iPnP, DHCPv6 guard, router advertisement guard, NEAT, DHCP snooping, DAI, AAA, SCP, QoS, UDP support, TCP support, BOOTP support, FTP support, DiffServ support |
| Compliant Standards | IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
| RAM | 4 GB |
| Built-in Devices | SD card reader |
| Status Indicators | Port status, power, console, setup, system, alarm |
Expansion / Connectivity
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x micro-USB Type B ¦ 2 x alarm input |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
Power
| Power Device | Internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Consumption Operational | 20 Watt |
