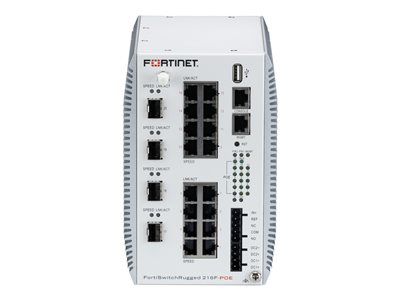

FORTISWITCHRUGGED-216F-POE LAYER 2/3 RUGGEDIZED FORTIGATE SWIT
FORTISWITCHRUGGED-216F-POE LAYER 2/3 RUGGEDIZED FORTIGATE SWIT
- Price:
$3,924.99
- Availability:
- Mfr #: FSR-216F-POE
- UNSPSC #: 43222501
- Item #: 011955843
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | >30 years |
| Compliant Standards | FCC, RCM, VCCI, BSMI Class A, RoHS, WEEE, FCC Part 15 B Class A, ICES, EMC, Directive 2014/30/EU, EN 55032:2015 Class A, EN 55035:2017/A11:2020, CISPR 32, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32 Class A, VCCI-CISPR 32:2016 Class A, CNS 15936: 2016 Class A, CNS 15598-1:2020, LVD 2014/35/EU, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1 Third Edition, IP40 |
Dimensions & Weight
| Width | 6.7 in |
| Depth | 7.1 in |
| Height | 4.6 in |
| Weight | 6.61 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
General
| Device Type | Switch - 16 ports - L3 - managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE++) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 360 W |
| Performance | Switching capacity: 112 Gbps ¦ Packets per second: 166 Mpps ¦ Latency: < 1 µs ¦ Packet buffer size: 1.5 MB |
| Capacity | VLANs supported: 4000 ¦ Link aggregation groups: 8 ¦ ACL: 2000 ¦ Spanning Tree Protocol instances: 32 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Static IP routing, OSPF, STP, IGMP, RSTP, MSTP, MLD, OSPFv2, RIP, RIP-2, VRRP, BGP, IS-IS, PIM-SSM, ECMP, Bidirectional Forwarding Detection (BFD), URPF, BGP-4, OSPFv3, VRRPv3 |
| Remote Management Protocol | MIB, Syslog, DHCP, IPv4, IPv6, Telnet, SSH, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, CLI, TFTP, RMON 1, UDP, TCP/IP, Web GUI |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP), Secure Shell (SSH) |
| Features | Fanless, reset button, PTP, HSR, PRP, auto-negotiation, Zero-Touch Deployment, NAC, auto-discovery, LLDP support, LLDP-MED, IGMP snooping, policy based routing, High Availability, LAG, 802.1x authentication, DHCP snooping, MAC black/whitelist, policy based access control, VLAN support, UTM, firewall protection, auto-uplink (auto MDI/MDI-X), STP Root Guard, STP BPDU Guard, Private VLAN, Storm Control, TDR, RPVST, Loop Guard, VLAN / port mapping, automatic topology detection, IGMP proxy, IGMP querier, MLD snooping, MLD proxy, MLD querier, DHCP relay, DHCP server, port mirroring, IP-MAC binding, sFlow, ACL support, DAI, IPFIX, NetFlow, IP source guard, RA guard, WOL, MC-LAG, MRP, DSCP based ToS, SNTP support, FTP support, SPAN, RSPAN, ERSPAN, DSCP support, ToS, ECN, QoS, IPv6 RA Guard, ARP support, VXLAN, FortiLink Mode |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 1588v2, IEEE 1613, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.1x, IEEE 802.1p |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 1 GB |
| Status Indicators | Link/activity/speed, PoE activity, Bluetooth Low Energy (BLE), management, power 1, power 2, input, output |
Expansion / Connectivity
| Interfaces | 16 x 1000Base-T RJ-45 PoE++ - 90 W ¦ 4 x 1/10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (console) RJ-45 ¦ 1 x USB Type A |
Power
| Power Redundancy | Yes |
| Features | Power Polarity Reverse Protect |
