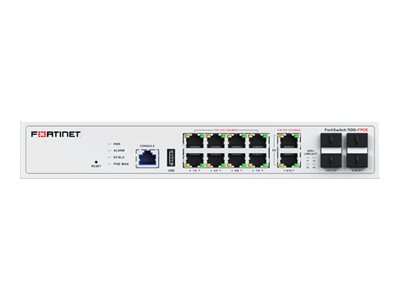

FORTISWITCH-110G-FPOE LAYER 2 FORTIGATE SWITCH CONTROLLER COMPATI
FORTISWITCH-110G-FPOE LAYER 2 FORTIGATE SWITCH CONTROLLER COMPATI
- Price:
$965.99
- Availability:
- Mfr #: FS-110G-FPOE
- UNSPSC #: 43222612
- Item #: 011956212
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | >10 years |
| Compliant Standards | FCC, RCM, VCCI, BSMI, UL, CB, RoHS2, IP30 |
Dimensions & Weight
| Width | 9 in |
| Depth | 10.6 in |
| Height | 1.7 in |
| Weight | 4.06 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
General
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | Side to back airflow desktop |
| Subtype | 5 Gigabit Ethernet |
| Ports | 2 x 10/100/1000/2.5G/5G (PoE++) + 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 200 W |
| Performance | Switching capacity: 140 Gbps ¦ Packets per second: 208 Mpps ¦ Latency: < 1 µs ¦ Packet buffer size: 2 MB |
| Capacity | VLANs supported: 4000 ¦ Link aggregation groups: 10 ¦ Total link aggregation groups: 12 ¦ ACL: 640 ¦ Spanning Tree Protocol instances: 32 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | IGMP, STP, MSTP, RSTP, BGP, static IP routing, IS-IS, RIP, RIP-2, OSPF, OSPFv2, OSPFv3, VRRP, VRRPv3, BGP-4 |
| Remote Management Protocol | DHCP, Syslog, HTTP, HTTPS, IPv4, IPv6, RMON 1, RMON 2, RMON 3, TFTP, Web GUI, CLI, UDP, TCP/IP, Telnet, SSH, MIB, SNMP 1, SNMP 2c |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP), Secure Shell (SSH) |
| Features | Fanless, ZTP, cloud managed, NAC, SASE, FortiLink Mode, SD-WAN support, IGMP snooping, VXLAN, VLAN support, LLDP, LLDP-MED, High Availability, LAG, MAB, 802.1x authentication, DHCP snooping, ARP support, automatic topology detection, auto-negotiation, VLAN Tagging, EEE, LACP, CSMA/CD, flow control, Loop Guard, auto-uplink (auto MDI/MDI-X), Storm Control, Private VLAN, RPVST, STP BPDU Guard, STP Root Guard, TDR, port trunking, ACL support, DAI, NetFlow, IPFIX, IP source guard, IPv6 RA Guard, IP-MAC binding, port mirroring, sFlow, WOL, MC-LAG, QoS, ECN, ToS, DSCP support, SNMP traps, FTP support, SPAN, RSPAN, ERSPAN, reset button |
| Compliant Standards | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Qbb, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 1588-2008, IEEE 802.1p |
| RAM | DDR4 SDRAM |
| Flash Memory | 8 MB |
| Status Indicators | Power, alarm, PoE max, Bluetooth Low Energy (BLE), Bluetooth |
Expansion / Connectivity
| Interfaces | 2 x 5GBase-T RJ-45 PoE++ ¦ 8 x 2.5GBase-T RJ-45 PoE+ ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x management (LAN) RJ-45 ¦ 1 x USB |
Power
| Power Device | External power adapter |
| Power Provided | DC 54 V |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 250 Watt |
