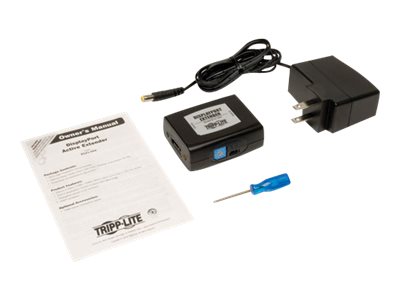

Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 45.72 m (150-ft.) from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (4.88 m (16-ft.) or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant.
- Product Description Tripp Lite Displayport Video Extender Equalizer Repeater for A/V 1920x1200 1080p - repeater - DisplayPort - TAA Compliant
- Device Type Repeater - 20 pin DisplayPort / 20 pin DisplayPort
- Form Factor External
- Data Link Protocol DisplayPort
- Max Transfer Distance 150 ft
- Power AC 120/230 V
- TAA Compliant Yes
- Manufacturer Warranty 3-year warranty
|
