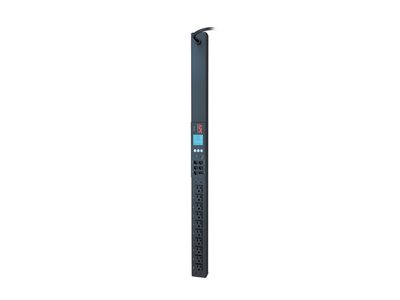

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower the total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- Product Description APC Metered Rack PDU 2G - power distribution unit - 1440 VA
- Device Type Power distribution unit - rack-mountable
- Rack Size 0U
- Weight 8.99 lbs
- Localization Japan, Canada, United States
- Input Voltage AC 100/120 V
- Output Voltage AC 100/120 V
- Power Capacity 1440 VA
- Input Connectors 1 x power NEMA 5-15P
- Output connectors 10 x power NEMA 5-15
- Networking Ethernet, RS-232, USB
- Remote Management Protocol SNMP, Telnet, HTTP
- Color Black
- Dimensions (WxDxH) 2.2 in x 1.7 in x 35.5 in
- Manufacturer Warranty 2-year warranty
- Designed For P/N: AR3103SP, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, PMM400-ALA, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750US, SRT1000RMXLI, SRT10RMXLIX806, SRT5KRMXLTUS, SRT5KRMXLW-TW
|
