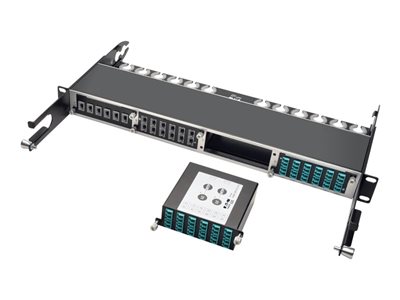

Tripp Lite's N484-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 40GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with (x2) 12-Fiber MTP/MPO cables, breaking out to (x12) LC Duplex fiber connections. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
- Product Description Eaton Tripp Lite Series 40G to 10G Breakout Cassette 2 12-Fiber MTP/MPO to 12 LC Duplex - fiber optic cassette
- Product Type Fiber optic cassette - LC x 12
- Dimensions (WxDxH) 4.4 in x 3.8 in x 1.4 in
- Weight 11.22 oz
- Product Material Cold-rolled steel
- Color Black
- Port Qty 12 ports
- Compliant Standards RoHS / ANSI T11.2/IEEE 802.3ae
- Manufacturer Warranty Limited lifetime warranty
|
