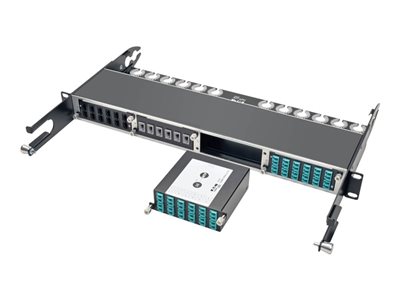

Tripp Lite's N484-1M24-LC12 is a High Density 100/120Gb to 10Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with Tripp Lite's N484-00U and N484-01U chassis, you can connect up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with a single 24-Fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite's N820-, N821-, and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
- Product Description Eaton Tripp Lite Series 100Gb/120Gb to10Gb Breakout Cassette 24-Fiber MTP/MPO 12 LC - fiber optic cassette
- Product Type Fiber optic cassette - LC x 24
- Dimensions (WxDxH) 4.4 in x 3.8 in x 1.4 in
- Weight 11.22 oz
- Product Material Cold-rolled steel
- Color Black
- Port Qty 12 ports
- Compliant Standards ANSI T11.2/IEEE 802.3ae
- Manufacturer Warranty Limited lifetime warranty
|
