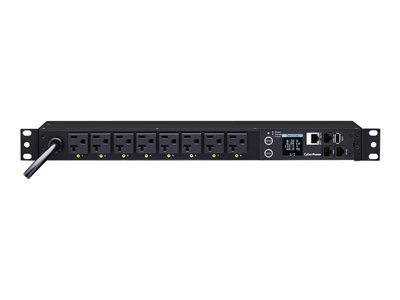

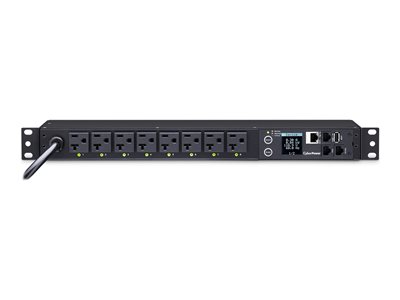

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with included adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
- Product Description CyberPower Switched Series PDU41002 - power distribution unit
- Device Type Power distribution unit - rack-mountable
- Cord Length 12 ft
- Rack Size 1U
- Weight 7.3 lbs
- Input Wiring 1-phase
- Input Voltage AC 100-120 V
- Output Voltage AC 100-120 V
- Input Connectors 1 x power NEMA 5-20P
- Output connectors 8 x power NEMA 5-20R
- Networking Ethernet, serial
- Remote Management Protocol SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH
- Included Accessories 10 cable ties, cable retention tray, 10 M4x8 mounting screws, 6 M3x6 mounting screws, 6 M5x12 mounting screws, 6 washers
- Dimensions (WxDxH) 17 in x 4.4 in x 1.8 in
- Manufacturer Warranty 3-year warranty
|
