The Cisco ASR 9000 Series 5th-generation high-density multi-rate line cards deliver high density to any slot of a Cisco ASR 9000 Series aggregation services router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network that are caused by a large increase in Video-on-Demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. A single 100 Gigabit Ethernet port can now replace large 10 Gigabit Ethernet link aggregation bundles to simplify network operations. Based on QSFP technology, this line card has flexible interfaces that support various Gigabit Ethernet modes, so it gives customers the flexibility to mix and match interface types on the same line card and offers operators the readiness for mass-scale networking.

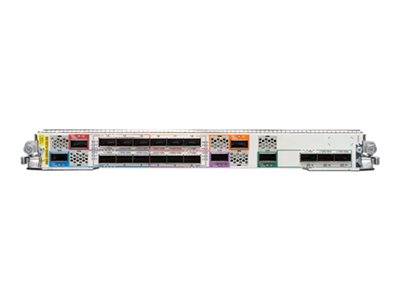

- Product Description Cisco 2T Service Edge Combo Line Card - 5th Generation - expansion module - 100 Gigabit QSFP28 x 20
- Device Type Expansion module
- Form Factor Plug-in module
- Ports 100 Gigabit QSFP28 x 20
- Dimensions (WxDxH) 15.6 in x 23.8 in x 1.6 in
- Weight 24.14 lbs
- Data Link Protocol 100GbE
- Compliant Standards IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, IEEE 802.3bs
- System Requirements Cisco IOS XR 7.1.15 or later
- Designed For ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2
|
