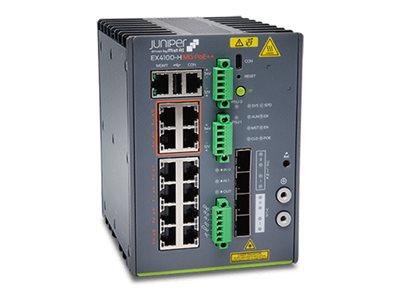

12 PORT EX HARDENED SWITCH WITHAC PSU
12 PORT EX HARDENED SWITCH WITHAC PSU
- Price:
$9,436.99
- Availability:
- Mfr #: EX4100-H-12MP
- UNSPSC #: 43222612
- Item #: 301231925
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: JPSU-H-340W-E-AC, JPSU-H-340W-E-DC |
Miscellaneous
| Compliant Standards | FCC 47 CFR Part 15, ICES-003, BS EN 55032, BS EN 55035, EN 300 386 V1.6.1, EN 300 386 V2.2.1, EN 300 386, EN 55032, CISPR 32, EN 55035, CISPR 35, IEC/EN 61000, EN IEC 61000-3-2, IEC/EN 61000-3-3, AS/NZS CISPR 32, VCCI-CISPR 32, BSMI CNS 15936, KS C 9835, KS C 9832, KS C 9610, EN 61000, IEC 61000-6-1, IEC 61000-6-3, GR-1089-CORE, Issue 8, IEEE 1613, IEC 61850-3, EN 50121-4, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-9, ICES-GEN, IEC 61000-6-5, IEEE 1613.1, EN 50121-3-2, EN 50155, IEC 60571, IEC 61373, IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, IEC 60068-2-31, NEBS, GR-63-CORE, Issue 5, GR-3108-CORE class 2, ETSI 300 019, EN 50125-3, NEMA TS-2, IEC 60068-2-52, GR 3108 Class 2, IEC 60255-21-1, IEC 60255-21-2, IEC 60255-21-3 Class 1, IEC 60529 IP30, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, CB Scheme, EN 62368-1:2014+A11:2017, EN IEC 62368-1:2020+A11:2020, BS EN 62368-1:2014+A11:2017, UL 62368-1:2019, CSA C22.2 No. 62368-1:19, UL 60950-1:2007, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, ECR 3.0.1, ETSI ES 203 136 V.1.1.1 |
Dimensions & Weight
| Width | 4.4 in |
| Depth | 5.3 in |
| Height | 6 in |
| Weight | 5.22 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
General
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 3U |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 10/100/1000Base-T + 4 x 100/1000/2.5G + 4 x 10 Gigabit (uplink) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 360 W |
| Performance | Switching capacity (64-byte packet size, unidirectional): 58 Gbps ¦ Switching capacity (64-byte packet size, bidirectional): 116 Gbps ¦ Layer 2 / layer 3 throughput (64-byte packet size): 86 Mpps |
| Capacity | MAC addresses: 64000 ¦ VLAN IDs: 4094 ¦ MST instances: 64 ¦ VLAN Spanning Tree Protocol instances: 253 ¦ Link Access Groups (LAGs): 128 ¦ ARP entries: 32000 ¦ IPv4 routes (Unicast, prefixes): 32150 ¦ IPv4 routes (Unicast, host routes): 32150 ¦ IPv4 routes (Multicast): 16100 ¦ VRF-lite instances: 1000 ¦ Access Control Lists (PACL/VACL/RACL): 4092 |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | L2PT, RIP-1, RIP-2, IS-IS, BGP, OSPF, static IP routing, Bidirectional Forwarding Detection (BFD), VRRP, RIPng, OSPFv3, OSPFv2, BGP-6, IGMPv2, IGMP, IGMPv3, PIM-SM, PIM-SSM, PIM-DM, MLD, MSTP, STP, CIDR |
| Remote Management Protocol | DHCP, CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 3, SNMP 2c, NTP, RADIUS, TACACS+, SSH-2, HTTP, HTTPS, DNS, Syslog |
| Encryption Algorithm | 256-bit AES, MD5, TLS, TTLS, PEAP |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | EVPN, VXLAN, MACsec support, ZTP, Virtual Chassis technology, shock-resistant, vibration-resistant, moisture protection, reset button, cloud managed, rugged, flow-based telemetry, JTI, store and forward, TDR, auto-uplink (auto MDI/MDI-X), MAC Layer, ARP support, DAI, IP source guard, proxy ARP, DHCP snooping, Captive Portal, DDoS Protection, VST, port-based VLAN, Voice VLAN, RTG, PVST+, RVI, UFD, LLDP-MED, ECN, sticky MAC, MAC Learning Disable, CoS, MVRP, MSTP support, DoS protection, VRF-Lite, ACL support, AAA, DHCPv6 snooping, IPv6 neighbor discovery, IPv6 source guard, iPv6 RA guard, IPv6 Neighbor Discovery Inspection, GRES, High Availability, QoS, IGMP snooping, traffic mirroring, traffic monitoring |
| Compliant Standards | IEEE 802.3bz, IEEE 802.3bt, ITU-T G.8032, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP) |
| Processor | X ARM: 1.7 GHz |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Status Indicators | System, speed, alarm, PoE, PSU1, PSU2, uplink, virtual chassis |
Expansion / Connectivity
| Interfaces | 4 x 100/1000/2.5G (PoE++) RJ-45 90 W ¦ 8 x 10/100/1000 Base-T (PoE++) RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ uplink ¦ 2 x 1/10Gbit LAN SFP+ Virtual Chassis/uplink ¦ 2 x alarm input ¦ 1 x alarm output |
Power
| Power Device | External power adapter - hot-plug |
| Installed Qty | 1 |
| Power Redundancy | Yes |
| Power Provided | 340 Watt |
| Voltage Required | AC 100-240 V |
Software / System Requirements
| Software Included | Junos OS |
