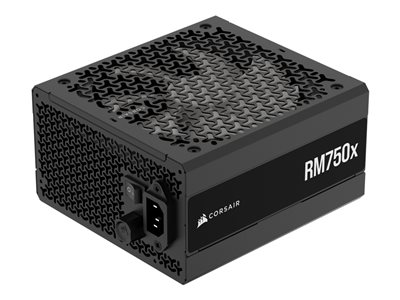

RMX SERIES, RM750X, 750 WATT, ATX 3.1, CYBENETICS GOLD CERTIFIED, FULL
RMX SERIES, RM750X, 750 WATT, ATX 3.1, CYBENETICS GOLD CERTIFIED, FULL
- Price:
$137.99
- Availability:
- Mfr #: CP-9020285-NA
- UNSPSC #: 39121017
- Item #: 301233786
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ 2 x power 8 pin EPS12V modular cable 2.5 ft ¦ 2 x 8 pin PCI Express power with detachable 2 pin section 2 ft ¦ 16-pin 12VHPWR power modular cable 2 ft ¦ 2 x 15 pin Serial ATA power modular cable 2.8 ft ¦ 4 pin power modular cable 2.5 ft ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 2 ft |
| MTBF | 100,000 hours |
| Cooling System | 140 mm fan |
| Features | Zero RPM fan mode, manual fan speed control, fully modular, Cybenetics A, Modern Standby compatible |
| Compliant Standards | UKCA, RoHS |
Dimensions & Weight
| Width | 5.9 in |
| Depth | 6.3 in |
| Height | 3.4 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 10 years |
General
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Localization | North America |
Power Device
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 1 x 16 pin PCI Express power ¦ 2 x 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, ±5, +12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| Cybenetics Certification | Cybenetics Gold |
