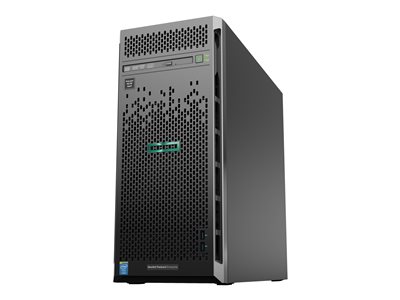

HPE ProLiant ML110 Gen9 Entry - tower Xeon E5-2603V3 1.6 GHz - 4 GB - no HDD
HPE ProLiant ML110 Gen9 Entry - tower Xeon E5-2603V3 1.6 GHz - 4 GB - no HDD
- Price:
$1,084.99
- Availability:
- Mfr #: 777160-001
- UNSPSC #: 43211501
- Item #: 301259322
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | 15 MB |
| Cache Per Processor | 15 MB |
Miscellaneous
| Features | Administrator password, power-on password, serial port I/O control, Setup Password, UEFI BIOS |
| Compliant Standards | ACPI 2.0b, FCC Class B certified, CISPR 24, ICES-003, EN 61000-3-3, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438 |
Networking
| Type | Integrated |
| Interface (Bus) Type | PCI Express x2 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP 330i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 4 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Dimensions & Weight
| Width | 7.7 in |
| Depth | 18.9 in |
| Height | 17.3 in |
| Weight | 27.56 lbs |
Hard Drive
| Type | No HDD |
Graphics Controller
| Graphics Processor | Matrox G200eH |
| Video Memory | 16 MB |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | 1 x RAID - integrated |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | HP Dynamic Smart Array B140i |
| Channel Qty | 10 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - parts - 3 years ¦ Limited warranty - parts and labor - 1 year - on-site |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% |
General
| Type | Server |
| Product Form Factor | Tower - 4.5U |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 1 |
| Localization | Region: United States |
Processor / Chipset
| CPU | Intel Xeon E5-2603V3 |
| Clock Speed | 1.6 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
Expansion / Connectivity
| Bays | 1 (total) / 1 (free) x external 5.25" ¦ 4 (total) / 4 (free) x internal 3.5" LFF |
| Slots | 8 (total) / 7 (free) x DIMM 288-pin ¦ 1 (total) / 0 (free) x CPU ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x4 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 1 x VGA (1 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 3 x USB 2.0 (2 rear, 1 internal) |
Power
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 350 Watt |
Operating System / Software
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Canonical Ubuntu |
RAM
| Installed Size | 4 GB (installed) / 256 GB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 1600 MHz |
| Rated Memory Speed | 2133 MHz |
| Memory Specification Compliance | PC4-17000 |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 7 (empty) |
| Features | Registered, Online Spare Memory, HP SmartMemory |
| Configuration Features | 1 x 4 GB |
| RAM Supported | PC4-17000 - 128 GB Load-Reduced ¦ PC4-17000 - 256 GB registered |
Optical Storage
| Type | No optical drive |
