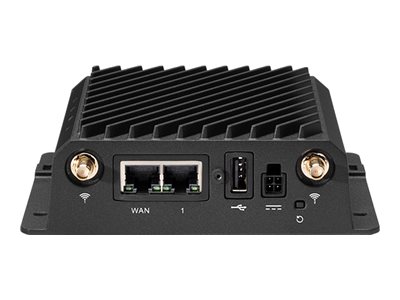

1-YR NETCLOUD MOBILE ROUTER ESSENTIALS PLAN, AND R980 ROUTER WITH WIFI
1-YR NETCLOUD MOBILE ROUTER ESSENTIALS PLAN, AND R980 ROUTER WITH WIFI
- Price:
$910.99
- Availability:
- Mfr #: MB01-R980-5GD-A
- UNSPSC #: 43222609
- Item #: 301274619
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: 170635-000, 170665-000, 170716-001, 170717-000, 170864-000, 170869-000, 170873-000, 170900-015 |
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
Miscellaneous
| MTBF | 1,407,191 hours |
| Localization | Australia, United States, Canada, European Union, New Zealand, United Kingdom |
Dimensions & Weight
| Width | 5.3 in |
| Depth | 4.8 in |
| Height | 1.6 in |
| Weight | 21.2 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
Communications
| Type | Wireless cellular modem |
| Cellular Protocol | 5G NR, LTE Advanced Pro, WCDMA, UMTS, HSPA+, FDD LTE, TDD LTE |
| Generation | 5G, 4G, 3G |
| Cellular Band | 5G n1, 5G n2, 5G n20, 5G n25, 5G n28, 5G n3, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n5, 5G n66, 5G n7, 5G n71, 5G n75, 5G n77, 5G n78, 5G n79, 5G n8, LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B2, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B3, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71, LTE B8, HSPA+ B1, HSPA+ B19, HSPA+ B2, HSPA+ B4, HSPA+ B5, HSPA+ B8 |
| Max Transfer Rate | 3.4 Gbps |
General
| Category | Online & appliance based services |
| Device Type | Router |
| Product Type | 1 year |
| Bundled Services | 1 year NetCloud IoT Essentials Plan |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Stateful firewall throughput: 940 Mbps ¦ IPS throughput: 940 Mbps ¦ VPN throughput (IPSec): 200 Mbps |
| Capacity | Concurrent VPN tunnels: 20 ¦ Concurrent TCP sessions: 32000 ¦ Typical client count: 50 ¦ Layer 2 VLANs: up to 64 |
| Encryption Algorithm | WPA-Personal, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise |
| Features | eSIM support, 2x2 MU-MIMO technology, Access Point operational mode, dual core CPU, Docker Support, 3GPP Release 16, IDS/IPS support |
| Compliant Standards | IEEE 802.11k, IEEE 802.11v, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ax, NMEA, TAIP, IP64, ISO 7637-2, UL, cUL, CB Scheme, EN 62368-1, SAE J1455, e-mark certified, WEEE, RoHS, REACH, CP65, FIPS 140-3 Level 1, MIL-STD 810H 514.8, BSS 7239, Class 1 Div 2 (C1D2), MIL-STD 810H 516.8, NFPA 130, FCC Part 96 CBRS, IC, RCM, UKCA, PTCRB, GCF |
| Processor | ARM8 |
| RAM | 921 MB |
| Flash Memory | 8 GB |
| Built-in Devices | GPS, Galileo, GLONASS, Beidou |
Line Properties
| Line Coding Format | 256 QAM |
Expansion / Connectivity
| Interfaces | WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 2 x RP-SMA - Wi-Fi ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Antenna: 1 x SMA - GNSS antenna ¦ Antenna: 4 x SMA - 5G |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
Power
| Power Device | External power adapter |
| Power Consumption Operational | 11 Watt |
Antenna
| Antenna | External detachable |
| Antenna Qty | 7 |
