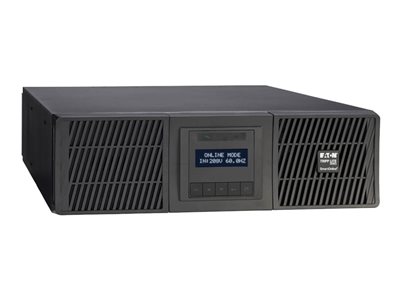

6000VA 5400W 208V ONLINE DOUBLE-CONVERSION UPS WITH MAINTENANCE BYPASS
6000VA 5400W 208V ONLINE DOUBLE-CONVERSION UPS WITH MAINTENANCE BYPASS
- Price:
$4,818.99
- Availability:
- Mfr #: SU6000RTMB
- UNSPSC #: 39121011
- Item #: 301632617
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: BP180RT, MDA3F34UPX00000, SUTFMR |
Miscellaneous
| Included Accessories | SUPDMBP6K maintenance bypass, network interface card (WEBCARDLXE), USB cable, hardwire connection cable gland, tower support stands, maintenance bypass mounting hardware |
| Cables Included | Power cable (NEMA L6-30P) 10 ft |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Surge protection, surge/noise protection, cold-start function, transient surge protection, double conversion, internal bypass, LCD display, VRLA battery support, audible alarm, fault alarm, low battery alarm, overload alarm, LED indicators, integrated network management, energy saving green topology, Remote Emergency Power Off (REPO), cooling fan |
| Compliant Standards | CAN/CSA-C22.2 No. 107.3 (Canada), cTUVus, EN 62040-2, FCC, FCC Part 15 B Class A, NOM, RoHS, UL 1778 |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 34 in |
| Height | 5.1 in |
| Weight | 111.51 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Battery
| Type | Expandable |
| Quantity | 4 |
| Technology | Valve regulated lead-acid (VRLA) |
| Voltage Provided | AC 120/208 V |
| Run Time (Up To) | 3 min at full load ¦ 8 min at half load |
| Transfer Time | 0 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 3U |
| Cord Length | 10 ft |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P, hardwire |
| Power Output Connectors Details | 2 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R |
| Output Voltage | AC 208 V 50/60 Hz |
| Max Electric Current | 24.8 A |
| Power Capacity | 5400 Watt / 6000 VA |
| Output Waveform | Sinewave |
| Efficiency | 93% |
| Power Factor (PF) | 0.9 |
Software / System Requirements
| Software Included | TrippLite PowerAlert |
