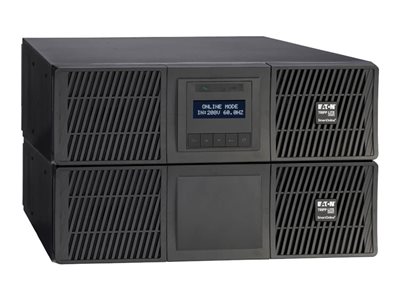

6000VA 5400W 120/208V OL DOUBLE-CONVERSION UPS W STEPDOWN TRANSFORMER

Need Help? Contact Zones Online support at 800.408.9663

Product Description Eaton Tripp Lite Series SmartOnline 6000VA 5400W 120/208V Online Double-Conversion UPS with Stepdown Transformer - 18 5-20R, 2 L6-20R and 1 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 6U - UPS - 5.4 kW - 6000 VA - VRLA - with SUTFMR 120V stepdown transformer
Device Type UPS - rack-mountable / external
Rack Size 19" - 6U
Weight 200.99 lbs
Input Wiring 1-phase
Input Voltage AC 200/208/220/230/240 V
Output Voltage AC 120/200/208/220/230/240 V � 1%
Power Capacity 5.4 kW / 6000 VA
Input Connectors 1 x hardwire
Output connectors 1 x power NEMA L6-30R (surge) � 2 x power NEMA L6-20R (surge) � 18 x power NEMA 5-20R (surge)
Battery Expandable valve regulated lead-acid (VRLA)
Batteries Qty 1 (installed) / 4 (supported)
Run Time (Up To) 3 min at full load
Networking RS-232, USB
Remote Management Protocol SNMP
Included Accessories Mounting hardware, cable gland, 4-post rail kit
Dimensions (WxDxH) 17.3 in x 27 in x 10.2 in
Environmental Standards ENERGY STAR
Manufacturer Warranty 2-year warranty
Bundled with SUTFMR 120V stepdown transformer
Designed For P/N: BP180RT, SUPDMBP6K
