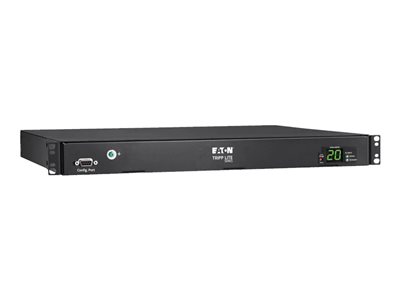

EATON TRIPP LITE SERIES 3.8KW 200-240V SINGLE-PHASE ATS/LOCAL METERED
EATON TRIPP LITE SERIES 3.8KW 200-240V SINGLE-PHASE ATS/LOCAL METERED
- Price:
$446.99
- Availability:
- Mfr #: PDUMH20HVATS
- UNSPSC #: 39121017
- Item #: 301637094
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 10 plug-lock insert sleeves |
| Cables Included | Power cable 12 ft |
| Rack Mounting Kit | Included |
| Features | LED indicators, Automatic Transfer Switch (ATS), current meter |
| Compliant Standards | UL 60950, Class A, NOM, RoHS |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 14.8 in |
| Height | 1.7 in |
| Weight | 10.3 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 18.3" |
Power Device
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 200 - 240 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C20 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 16 A |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Max Electric Current | 20 A |
| Power Capacity | 3.84 kW |
Dimensions & Weight (Shipping)
| Shipping Width | 23.2 in |
| Shipping Depth | 20.6 in |
| Shipping Height | 5.4 in |
| Shipping Weight | 17.79 lbs |
