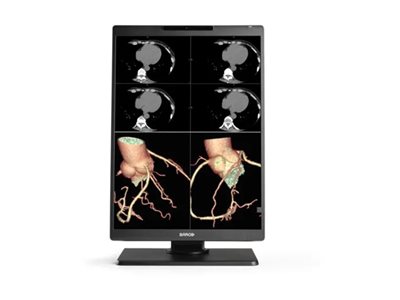

NIO C 2MP SNES 21IN 1H1F EXCL DC US

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

Features	Portrait / landscape mode
Included Accessories	Protective cover
Backlight Life	20,000 hours
Compliant Standards	VCCI, DEMKO, FCC Part 15 B, CCC, RoHS, ICES Class B, KCC, FDA 510k, CAN/CSA C22.2 No. 60601-1, ANSI/AAMI ES60601-1:2005, IEC 60601-1:2005 + A1:2012 + A2:2020, IEC 60601-1-2:2014 + A1:2020 (Ed 4.1), IEC 60950-1:2005+A1:2009+A2:2013 (International), CE0123, BSMI, REACH, WEEE, Canada Health, Packaging Directive, ICES-001 level B, EU RoHS, China RoHS

Dimensions & Weight

Dimensions & Weight Details

With stand - width: 19.3 in - depth: 8.9 in - height: 22.1 in � Without stand - width: 19.3 in - depth: 2.5 in - height: 13.8 in

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Max Operating Temperature

95 �F

Mechanical

Display Position Adjustments	Height, pivot (rotation)
Height Adjustment	3.9 in
VESA Mounting Interface	100 x 100 mm

General

Pixel Pitch	0.27 mm
Brightness	1000 cd/m�
Contrast Ratio	2000:1
Color Support	1.07 billion colors (30-bit)
Response Time	12 ms (gray-to-gray)
Horizontal Viewing Angle	178
Vertical Viewing Angle	178
Screen Coating	Anti-reflective
Backlight Technology	LED backlight
Features	Integrated Front Sensor, Uniform Luminance Technology (ULT), 30-bit color depth, RapidFrame
Color	Black, RAL 9004, white, RAL 9003
Dimensions (WxDxH)	19.3 in x 8.9 in x 22.1 in - with stand

Connectivity

Interfaces

2 x DisplayPort 1.4 � 2 x USB 2.0 upstream (Type B) � 5 x USB 2.0 downstream (Type A)

Power

Input Voltage

AC 100-240 V (50/60 Hz)

Software / System Requirements

Included Software

Barco QAWeb Enterprise
