Hardware- Standard: IEEE 802.3 10Base-T IEEE802.3u 100Base-TX; IEEE 802.3ab 1000base-T IEEE 802.3af Power over Ethernet
- Network Media: 10BASET: 2-pair UTP Cat. 3, 4, 5; up to 100m; 100BASE-TX: 2-pair UTP Cat. 5, 5E; up to 100m; 1000BASE-T: 4-pair UTP Cat. 5, 5E, 6; up to 100m; PoE: 4-pair UTP Cat. 5; up to 100m
- Protocol / Topology: CSMA/CD ; Star

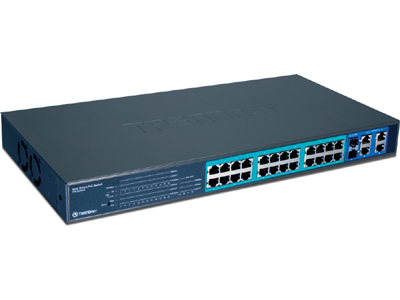

- Ports: 24 x 10/100Mbps Auto-MDIX PoE Ports; 2 x 10/100/1000Mbps Auto-MDIX Gigabit Ports; 2 x 1000Base-SX/LX Mini GBIC ports for optional Mini-GBIC modules (share with port 25,26)
- Data Transfer Rate: Ethernet: 10/20Mbps (half/full duplex); Fast Ethernet: 100/200Mbps (half/full duplex); Gigabit: 2000Mbps (full duplex)
- RAM Buffer / Filtering: 1Mits / 8K entry per device
- Power: 100~240VAC 50/60Hz, Internal Universal Switching Power Supply
- Diagnostic LEDs: Per Unit: Power, System; Per Port: Link/Activity, Speed; PoE: PoE Status
- Power Consumption (170w max for PoE): 26.5 watts (no PD Device connected); 196.5 watts max (11 x 15.4 watts PoE Device connected)
- Operating Temperature: 0 ~ 40 deg C (32 ~ 104 degF)
- Storage Temperature: -10 ~ 70 deg C (14 ~ 158 degF)
- Humidity: 10%- 90% (non-condensing)
- Dimensions: 440 x 310 x 44 mm (17.3 x 12 x 1.73 inch) (W x H x D)
- Weight: 4.43kg (9.75 lbs)
- Certification: FCC, CE
Power over Ethernet - Up to 15.4 watts per port; Max 170W for all PoE ports
- PD classification Identify; Manual setting for PoE power limitation
- Supports PoE priority setting; PoE over current protection
- PoE circuit sorting protection
- PoE power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power-
|
