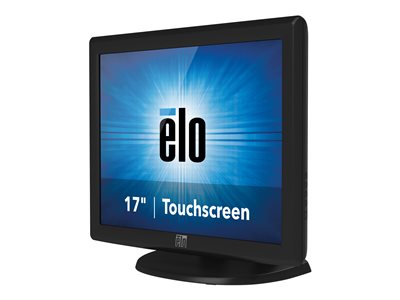

Elo 1715L Dark Gray 17in 1280x1024 LCD SAW Touchscreen Monitor - Digit
Elo 1715L Dark Gray 17in 1280x1024 LCD SAW Touchscreen Monitor - Digit
- Price:
$885.99
- Availability:
- Mfr #: E719160
- UNSPSC #: 43211902
- Item #: 03014656
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Input
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Surface acoustic wave |
Miscellaneous
| Features | Wall mountable |
| Cables Included | 1 x VGA cable ¦ 1 x serial cable ¦ 1 x USB cable |
| Backlight Life | 30,000 hours |
| MTBF | 50,000 hour(s) |
| Compliant Standards | UL, TUV GS, VCCI, C-Tick, cUL, IC, FCC, RoHS |
Mechanical
| VESA Mounting Interface | 100 x 100 mm |
| Flat Panel Mount Interface | 100 x 100 mm |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
General
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 17" |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 at 75 Hz |
| Brightness | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Response Time | 5 ms |
| Vertical Refresh Rate | 75 Hz |
| Horizontal Refresh Rate | 80 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +80 / -80 |
| Backlight Technology | LED backlight |
| Controls & Adjustments | Brightness, contrast, H/V position, color temperature, phase, clock |
| OSD Languages | English, German, French, Spanish, Japanese |
| Features | IntelliTouch Surface Wave, Sync on Green |
| Color | Dark gray |
| Dimensions (WxDxH) | 15.4 in x 8 in x 14.4 in |
| Weight | 15.21 lbs |
Connectivity
| Interfaces | VGA ¦ 2 x serial ¦ USB |
Power
| Power Supply | Internal |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 21 Watt |
| Power Consumption Operational | 21 Watt |
