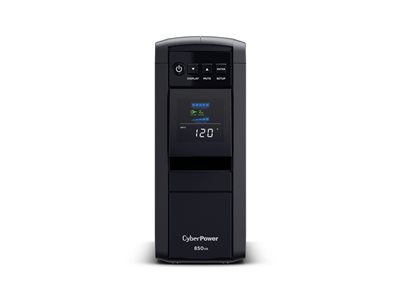

CyberPower CP850PFCLCD Pure Sine Wave UPS 850VA 510W PFC compatible
CyberPower CP850PFCLCD Pure Sine Wave UPS 850VA 510W PFC compatible
- Price:
$182.99
- Availability:
- Mfr #: CP850PFCLCD
- UNSPSC #: 39121011
- Item #: 03227240
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | FCC Class B certified, UL 1778, RoHS, cUL 107.3 |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 3.9 in |
| Depth | 10.2 in |
| Height | 9.7 in |
| Weight | 14.9 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 7.8 in |
| Shipping Depth | 13.5 in |
| Shipping Height | 13.5 in |
| Shipping Weight | 17.39 lbs |
Software / System Requirements
| Software Included | PowerPanel Personal |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 3 min at full load ¦ 9 min at half load |
| Recharge Time | 8 hours |
| Transfer Time | 4 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | UPS - external |
| Color | Black |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 88 - 144 V |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Frequency Provided | 60 Hz ± 1% |
| Frequency Required | 57 - 63 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 5 x power NEMA 5-15R (surge) ¦ 5 x power NEMA 5-15R (UPS and surge) |
| Output Voltage | AC 120 V ± 5% - 60 Hz |
| Power Capacity | 510 Watt / 850 VA |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1150 Joules |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
