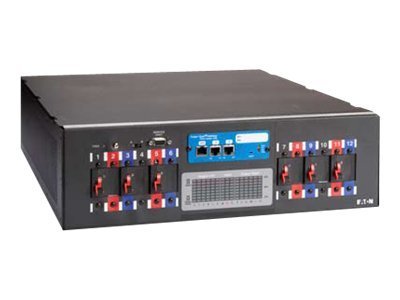

Powerware Rack Power Module RPM-3U - power distribution unit
Powerware Rack Power Module RPM-3U - power distribution unit
- Price:
$3,615.99
- Availability:
- Mfr #: Y03113022300000
- UNSPSC #: 39121017
- Item #: 001024768
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 15 ft |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LED display, digital power meter, Energy Management System with card |
| Compliant Standards | FCC Class A certified, CSA, NOM, VDE, FCC CFR47 Part 15, UL 60950-1, UL 489 |
Networking
| Remote Management Interface | RS-232 |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 19.9 in |
| Height | 5.2 in |
| Weight | 29.98 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 5 - 95% |
| Sound Emission | 50 dBA |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Output Connectors | 4 x power NEMA L21-30 |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 176 - 260 V |
| Input Wiring | 3-phase |
| Frequency Required | 45 - 65 Hz |
| Power Output Connectors Details | 4 x power NEMA L21-30 |
| Max Electric Current | 33.3 A |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Expansion Slots | 1 X-Slot |
| Expansion Slot(s) | 1 X-Slot |
