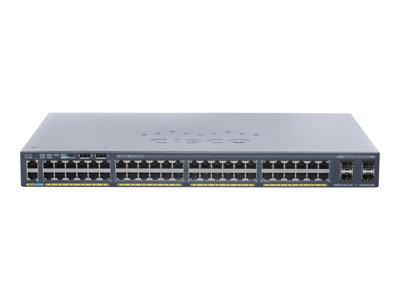

Cisco Catalyst 2960X-48TS-L - switch - 48 ports - managed - rack-mount
Cisco Catalyst 2960X-48TS-L - switch - 48 ports - managed - rack-mount
- Price:
$2,959.99
- Availability:
- Mfr #: WS-C2960X-48TSL-RF
- UNSPSC #: 43222612
- Item #: 001872189
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 442,690 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, CNS 13438(95) Class A, EN 55022 Class A, EN 300 386 |
| Pricing Type | Refurbished |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 11 in |
| Height | 1.8 in |
| Weight | 9.26 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Service & Support Details | Limited warranty - advance parts replacement - lifetime - response time: next business day ¿ Technical support - consulting - 90 days |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
General
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 107.1 Mpps |
| Capacity | Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 8 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, RSTP support, MSTP support, DTP support, PAgP support, TFTP support, ACL support, RADIUS support, Jumbo Frames support, MLD snooping, DAI, Cisco EnergyWise technology, URPF, UDLD, Rapid PVST+, IPv4 support, SRR, LACP, RSPAN, NetFlow, HSRP support, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3az, IEEE 802.1AX |
| Processor | : 600 MHz |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Port transmission speed, port duplex mode, system, status, link/activity |
Expansion / Connectivity
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B management ¦ 1 x USB Type A ¦ 1 x 1000Base-TX RJ-45 management ¦ 4 x SFP uplink |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
Power
| Power Device | Internal power supply |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Features | Redundant Power System (RPS) connector |
Software / System Requirements
| Software Included | Cisco IOS LAN Base |
