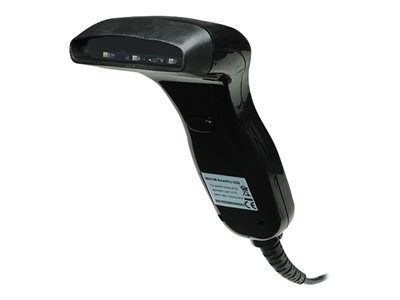

Manhattan Contact CCD Barcode Scanner - barcode scanner
Manhattan Contact CCD Barcode Scanner - barcode scanner
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | FCC |
Dimensions & Weight
| Width | 6.8 in |
| Depth | 3.5 in |
| Height | 2.6 in |
| Weight | 4.59 oz |
Barcode
| Interface Type | USB |
| Minimum Bar Width | 3.937 mil |
| Scan Field Width | 3.15 in |
| Scan Element Type | CCD |
| Scan Mode | Single-pass |
| Scan Speed | 120 scan / sec |
| Max Working Distance | 0.8 in |
| Print Contrast Signal (PCS) | 90% |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, Telepen, Code 39 Full ASCII, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Code 2 of 6, RSS |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Reduced Space Symbology (RSS) |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 95% (non-condensing) |
General
| Type | Barcode scanner - handheld |
Expansion / Connectivity
| Interfaces | 1 x USB |
Power
| Electric Current Required | 124 mA (operating) |
