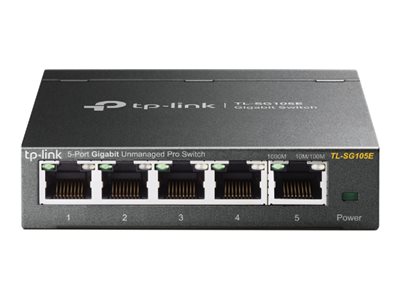

TP-Link Easy Smart TL-SG105E - switch - 5 ports
TP-Link Easy Smart TL-SG105E - switch - 5 ports
- Price:
$28.99
- Availability:
- Mfr #: TL-SG105E
- UNSPSC #: 43222630
- Item #: 002177830
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | FCC, RoHS |
Dimensions & Weight
| Width | 3.9 in |
| Depth | 3.9 in |
| Height | 1 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
General
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Forwarding performance: 7.4 Mpps |
| Capacity | Virtual interfaces (VLANs): 32 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 16KB |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), fanless, QoS, Storm Control, IGMP snooping, port mirroring, Cable Diagnostics Function, loop prevention, store and forward |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 801.1p |
| Status Indicators | Power, port status |
Expansion / Connectivity
| Interfaces | 5 x 1000Base-T RJ-45 |
Power
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Software / System Requirements
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista / XP / 7 / 8, Apple MacOS, Novell NetWare, UNIX, Linux |
