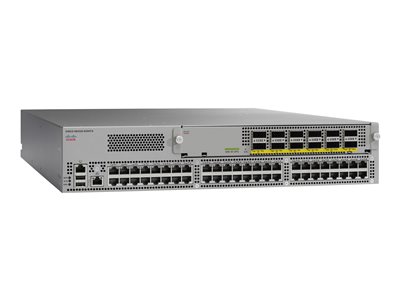

The Cisco Nexus 9396TX is a dense, line-rate 10GBase-T switch. It delivers comprehensive line-rate Layer 2 and Layer 3 overlays and the Cisco Application Centric Infrastructure (ACI) feature set. It is ideal for top-of-rack deployments in both traditional and ACI-enabled enterprise, service provider, and cloud environments.
- Product Description Cisco Nexus 9396TX - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed
- Enclosure Type Rack-mountable 2U
- Subtype 10 Gigabit Ethernet
- Ports 48 x 10GBase-T + 12 x 40 Gigabit QSFP+
- Performance Bandwidth: 1.92 Tbps
- Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ MAC addresses: 160000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096
- Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
- Features Flow control, modular design, load balancing, VLAN support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, LLDP support, Link Aggregation Control Protocol (LACP), DiffServ Code Point (DSCP) support
- Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.3ba
- Power Redundancy Yes
- Dimensions (WxDxH) 17.5 in x 22.5 in x 3.5 in
- Manufacturer Warranty 1-year warranty
|
