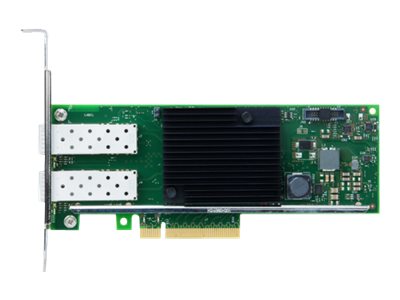

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of data centers. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient. The X710 is available in standard PCIe low-profile card form factor with two 10 GbE ports or mezzanine card ML2 form factor with four 10 GbE ports. The following figure shows the Intel X710 2x10GbE SFP+ Adapter for System x.
- Product Description Intel X710 2x10GbE SFP+ Adapter for System x - network adapter
- Device Type Network adapter
- Form Factor Plug-in card - low profile
- Interface (Bus) Type PCI Express 3.0 x8
- PCI Specification Revision PCIe 3.0
- Ports 10Gb Ethernet x 2
- Dimensions (WxDxH) 0.6 in x 6.6 in x 2.7 in
- Capacity VLANs supported: 4096
- Network / Transport Protocol TCP/IP, UDP/IP
- Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae
- System Requirements SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012, SuSE Linux Enterprise Server 11 for Intel x86/AMD64/EM64T (32/64 bits), Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7
- Manufacturer Warranty 1-year warranty
- Designed For NeXtScale nx360 M4; nx360 M5; System x iDataPlex dx360 M4; System x3250 M4; x3250 M5; x3500 M4; x3530 M4; x3550 M4; x3550 M5; x3630 M4; x3650 M4 BD; x3650 M4 HD; x3650 M5; x3690 X5; x3750 M4; x3850 X5; x3850 X6; x3950 X5; x3950 X6
|
