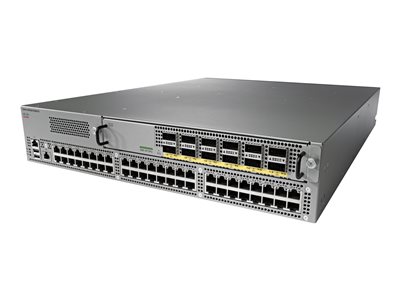

- Product Description Cisco Nexus 9396TX - switch - 48 ports - managed - rack-mountable - with 8 x Cisco QSFP-40G-SR-BD modules
- Device Type Switch - 48 ports - L3 - managed - with 8 x Cisco QSFP-40G-SR-BD modules
- Packaged Quantity 2 (specifications are for single item)
- Enclosure Type Rack-mountable 2U
- Subtype 10 Gigabit Ethernet
- Ports 48 x 10GBase-T + 8 x 40 Gigabit QSFP+
- Performance Bandwidth: 1.92 Tbps
- Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000 ¦ ACL entries (ingress): 4000 ¦ ACL entries (egress): 1000
- MAC Address Table Size 96K entries
- Routing Protocol IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3, BGP for IPv6
- Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
- Features Load balancing, IGMP snooping, Syslog support, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, WRED, STP support, RSTP support, MSTP support, priority-based flow control, ACL support, QoS, PVST+, BFD, UDLD, DHCP relay, CoS, TFTP client, vPC technology, DSCP support, 3 fans
- Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
- Power Redundancy Yes
- Dimensions (WxDxH) 17.5 in x 22.5 in x 3.5 in
- Manufacturer Warranty 1-year warranty
|
