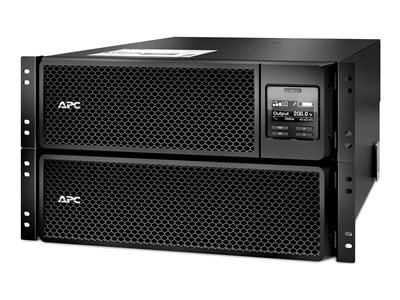

APC Smart-UPS SRT 10000VA RM - UPS - 10 kW - 10000 VA
APC Smart-UPS SRT 10000VA RM - UPS - 10 kW - 10000 VA
- Price:
$12,239.99
- Availability:
- Mfr #: SRT10KRMXLT-IEC
- UNSPSC #: 43211600
- Item #: 002721662
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Audible alarm, LCD display |
| Compliant Standards | UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20 |
Networking
| Remote Management Interface | Ethernet 10/100, USB |
Dimensions & Weight
| Width | 17 in |
| Depth | 28.1 in |
| Height | 10.4 in |
| Weight | 245.99 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 3.3 ft |
| Shipping Height | 18.1 in |
| Shipping Weight | 286 lbs |
Compatibility Information
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2000LV, SMX2000LVNCUS, SMX3000LVUS |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 3 years ¿ Limited warranty - batteries - 2 years |
Battery
| Quantity | 2 |
| Technology | Lead acid |
| Run Time (Up To) | 4 min at full load ¦ 11 min at half load |
| Recharge Time | 1.5 hours |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 6U |
| Color | Black |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208/220/240 V |
| Input Voltage Range | AC 160 - 275 V |
| Input Voltage Range (Adjustable) | AC 100 - 275 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connector(s) | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Input Connectors | 1 x hardwire 3-wire (2PH + G) |
| Power Output Connectors Details | 6 x power IEC 60320 C13 ¦ 3 x IEC jumper ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (2PH + G) |
| Output Voltage | AC 208/220/240 V ± 3% - 50/60 Hz |
| Power Capacity | 10 kW / 10000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 480 Joules |
| Efficiency | 98% |
Expansion / Connectivity
| Expansion Slot(s) | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
