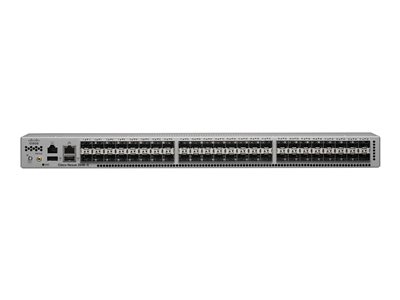

- Product Description Cisco Nexus 3548x - switch - 48 ports - managed - rack-mountable
- Device Type Switch - 48 ports - L3 - managed
- Enclosure Type Rack-mountable 1U
- Subtype 10 Gigabit Ethernet
- Ports 48 x SFP+
- Performance Switching capacity: 960 Gbps ¦ Forwarding performance: 720 Mpps
- Capacity Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries: 4096 ¦ IPv4 routes (Unicast): 24000 ¦ IPv4 hosts: 64000 ¦ IPv4 routes (Multicast): 8000 ¦ OSPF routes: 256
- MAC Address Table Size 64K entries
- Jumbo Frame Support 9216 bytes
- Routing Protocol OSPF, RIP-2, HSRP, VRRP, OSPFv2, static IP routing, ECMP, CIDR
- Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
- Features Flow control, NAT support, BOOTP support, ARP support, trunking, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, EIGRP Stub Routing, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), DHCP relay, NTP time synchronization, STP PortFast, Class of Service (CoS), Precision Time Protocol (PTP), 18MB packet buffer
- Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1AX, IEEE 1588-2008
- Power AC 120/230 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.3 in x 18.4 in x 1.7 in
- Weight 17.42 lbs
- Manufacturer Warranty 1-year warranty
|
