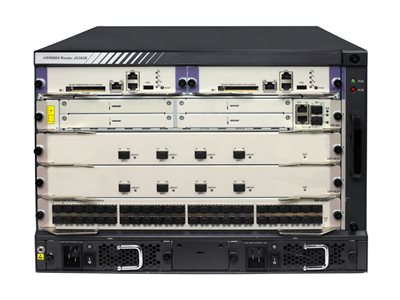

HPE HSR6804 - modular expansion base - rack-mountable
HPE HSR6804 - modular expansion base - rack-mountable
- Price:
$9,817.50
- Availability:
- Mfr #: JG362B
- UNSPSC #: 43222609
- Item #: 003007480
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Dimensions & Weight
| Width | 17.2 in |
| Depth | 19 in |
| Height | 12.1 in |
| Weight | 56.22 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 1 year |
Environmental Parameters
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% |
General
| Device Type | Modular expansion base |
| Enclosure Type | Rack-mountable - modular - 7U |
| Connectivity Technology | Wired |
| Performance | Throughput: up to 240 Mpps ¦ Backplane speed: 1024 Gbps |
| Capacity | IPv4 routing table entries: 4000000 ¦ IPv6 routing table entries: 2000000 ¦ IPv4 forwarding table entries: 1000000 ¦ IPv6 forwarding table entries: 1000000 |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1AX, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, AS/NZS 60950, EN 60825-2, VCCI V-3 Class A ITE, VCCI V-4, KN22, KN24, EN 301 489-1, EN 300 386, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 |
| Processor | 1 x PowerPC 1 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 1 GB (installed) / 2 GB (max) |
Expansion / Connectivity
| Interfaces | Management: 1 x RJ-45 ¦ Management: 1 x RS-232C |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot ¦ 16 (total) / 16 (free) x Multifunction Interface Module (MIM) ¦ 2 (total) / 1 (free) x CompactFlash |
| Installed Modules Qty (Max) | 0 |
Power
| Power Device | Internal power supply (not installed) - hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 851 Watt |
