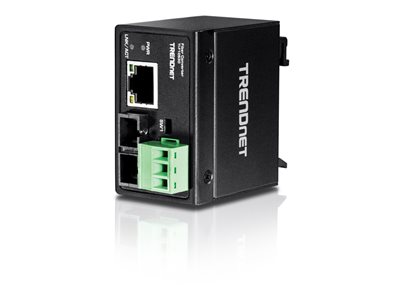

TRENDnet TI-F10S30 - fiber media converter - 10Mb LAN, 100Mb LAN
TRENDnet TI-F10S30 - fiber media converter - 10Mb LAN, 100Mb LAN
- Price:
$116.99
- Availability:
- Mfr #: TI-F10S30
- UNSPSC #: 43201553
- Item #: 003472622
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Compliant Standards | FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP40 |
| TAA Compliant | Yes |
Networking
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 18.6 miles |
| Features | Auto-negotiation, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, over-current protection, built-in DIP switch, 8KV ESD Protector, 6KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Dimensions & Weight
| Width | 2.4 in |
| Depth | 2 in |
| Height | 1.4 in |
| Weight | 3.17 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
| Service & Support Details | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
Expansion / Connectivity
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode female x 2 |
Power
| Power Device | External power adapter |
| Power Consumption Operational | 1.92 Watt |
