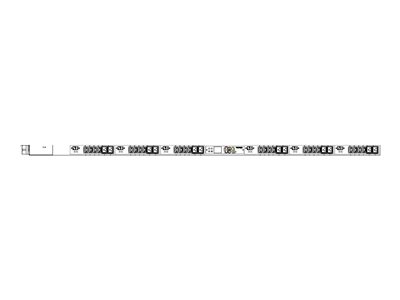

Raritan Dominion PX PX3-5749V-V2 - power distribution unit - 16600 VA
Raritan Dominion PX PX3-5749V-V2 - power distribution unit - 16600 VA
- Price:
$3,542.99
- Availability:
- Mfr #: PX3-5749V-V2
- UNSPSC #: 39121017
- Item #: 003602580
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | LED display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready |
| Compliant Standards | UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
Dimensions & Weight
| Width | 2.3 in |
| Depth | 3.1 in |
| Height | 78 in |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 85% |
General
| Output Connectors | 36 x power IEC 60320 C13, power IEC 60320 C19 |
Power Device
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 3-phase 4 Wire delta |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x Hubbell CS8365C |
| Power Output Connectors Details | 24 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 40 A |
| Power Capacity | 16600 VA |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x monitoring - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 12.6 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 90.4 in |
