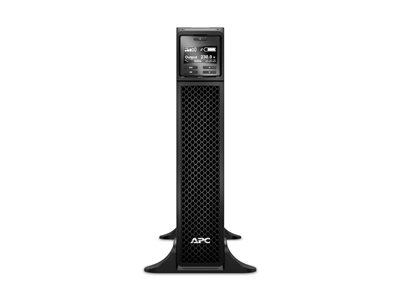

APC Smart-UPS SRT 2200VA - UPS - 1980 Watt - 2200 VA
APC Smart-UPS SRT 2200VA - UPS - 1980 Watt - 2200 VA
- Price:
$2,180.99
- Availability:
- Mfr #: SRT2200XLI
- UNSPSC #: 43211600
- Item #: 003645648
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 8 ft |
| Features | Audible alarm, emergency power off, LCD display, internal bypass |
| Compliant Standards | VDE, IEC 62040-2, IP20, EAC, RCM, IEC 62040-1 |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 3.3 in |
| Depth | 23 in |
| Height | 17 in |
| Weight | 55.12 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 3 years ¿ Limited warranty - batteries - 2 years |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
Battery
| Technology | Lead acid |
| Recharge Time | 3 hours |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - external |
Environmental Standards
| ENERGY STAR | Yes |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 220 - 240 V |
| Input Voltage Range (Adjustable) | AC 100 - 275 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Power IEC 60320 C20, power BS 1363A, Europlug (power CEE 7/16) |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Power Capacity | 1980 Watt / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 340 Joules |
Expansion / Connectivity
| Interfaces | 1 x serial - RJ-45 ¦ 1 x EPO (emergency power off) ¦ 1 x management (USB) |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 31.9 in |
| Shipping Height | 9.7 in |
| Shipping Weight | 67.99 lbs |
Software / System Requirements
| Software Included | APC PowerChute Business Edition |
