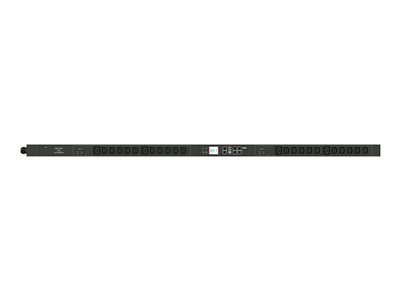

1PH 208V 24A 20XC13 4XC19 PERPL6-30P 5.0KVA 0U RED
1PH 208V 24A 20XC13 4XC19 PERPL6-30P 5.0KVA 0U RED
- Price:
$1,912.99
- Availability:
- Mfr #: PX3-5497V-C5K1
- UNSPSC #: 39121017
- Item #: 003773465
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, monitored, bottom-bottom feed cord entry, 2 x LEGBXA66-20 overload protection, cord retention |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21 |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
Dimensions & Weight
| Width | 2 in |
| Depth | 2.6 in |
| Height | 60.6 in |
| Weight | 11.46 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 20 x power IEC 60320 C13 - 208 V 12 A ¦ 4 x power IEC 60320 C19 - 208 V 16 A |
| Output Voltage | AC 240 V |
| Max Electric Current | 30 A |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x sensor - RJ-45 ¦ 1 x modem - RJ-45 ¦ 2 x monitoring - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 11 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 71.5 in |
| Shipping Weight | 16.53 lbs |
