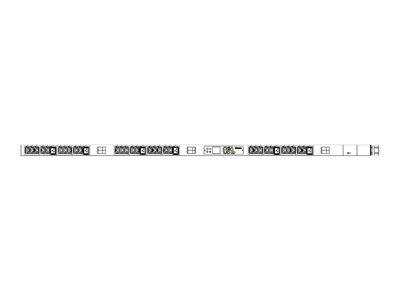

Raritan Dominion PX PX3-5830I2U-F1 - power distribution unit - 28800 V
Raritan Dominion PX PX3-5830I2U-F1 - power distribution unit - 28800 V
- Price:
$3,051.99
- Availability:
- Mfr #: PX3-5830I2U-F1
- UNSPSC #: 39121017
- Item #: 004244621
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - integrated - 10 ft |
| Features | Preboot Execution Environment (PXE) support, LED display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI |
Dimensions & Weight
| Width | 2.3 in |
| Depth | 3.1 in |
| Height | 74.5 in |
| Weight | 25.93 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black powder coat |
| Output Connectors | 36 x power IEC 60320 C13, power IEC 60320 C19 |
Power Device
| Input Voltage | AC 415 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 60A |
| Power Output Connectors Details | 30 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Max Electric Current | 60 A |
| Power Capacity | 28800 VA |
Expansion / Connectivity
| Interfaces | 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B |
Dimensions & Weight (Shipping)
| Shipping Width | 15.9 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 89.8 in |
| Shipping Weight | 29.19 lbs |
