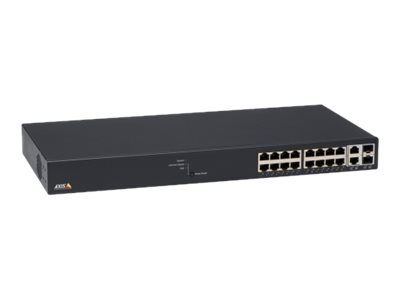

Product Description Axis T8516 - switch - managed - rack-mountable
Device Type Switch - managed
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 16 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 240 W
Performance Throughput: 26.8 Mpps � Switching capacity: 36 Gbps
MAC Address Table Size 8K entries
Jumbo Frame Support 9216 bytes
Routing Protocol IGMP
Remote Management Protocol SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH
Features ARP support, VLAN support, IPv6 support, IP address filtering, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, DHCP server, IPv4 support, DNS server, LLDP support, NTP server, administrator's password, BPDU
Compliant Standards IEEE 802.3af, IEEE 802.1x, IEEE 802.3at
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.4 in x 8.3 in x 1.7 in
Weight 6.61 lbs
Color Black
Localization United States
Manufacturer Warranty 3-year warranty
Designed For AXIS A1610-B, C1410, D3110, M3067-P, M3068-P, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, W400; Camera Station S1216 Recording Server, S1232, S1296
