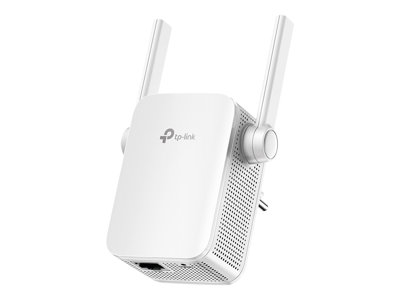

TP-Link AC1200 Wi-Fi Range Extender RE305 - Wi-Fi range extender
TP-Link AC1200 Wi-Fi Range Extender RE305 - Wi-Fi range extender
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | FCC, RoHS |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1200 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Wi-Fi AC Rating | AC1200 |
| Wi-Fi Rating | AC1200 |
| Features | DHCP support, MAC address filtering, Access Point operational mode, wall mountable, Wi-Fi Multimedia (WMM) support, Wi-Fi Protected Setup (WPS), reset button |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 2 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Wi-Fi range extender |
| Width | 3.1 in |
| Depth | 3.1 in |
| Height | 3 in |
Expansion / Connectivity
| Interfaces | 1 x 100Base-TX - RJ-45 |
Power
| Power Device | Internal power supply |
| Power Consumption Operational | 7.3 Watt |
Antenna
| Antenna | External integrated |
| Antenna Qty | 2 |
Software / System Requirements
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Vista / XP / 7 / 8 |
