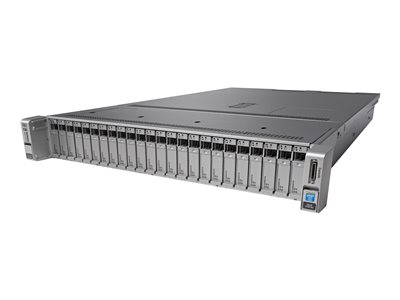

Cisco UCS SmartPlay Select C240 M4SX - rack-mountable - Xeon E5-2680V4
Cisco UCS SmartPlay Select C240 M4SX - rack-mountable - Xeon E5-2680V4
- Price:
$17,074.99
- Availability:
- Mfr #: UCS-SPBD-C240M4-MT
- UNSPSC #: 43210000
- Item #: 004488014
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 70 MB |
| Cache Per Processor | 35 MB |
Miscellaneous
| Included Accessories | 2 x CPU Heatsink, riser card, Cisco Ball Bearing Rail Kit, CPU asset tab ID label, SuperCap cable 250mm |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, UL 60950-1 Second Edition, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, KN24, KN22 Class A, GB4943.1-2001, EN 300386 |
Hard Drive (2nd)
| Type | HDD |
| Interface Class | Serial Attached SCSI |
| Capacity | 16 x 1.2 TB |
| Interface Type | SAS 12Gb/s |
| Spindle Speed | 10000 rpm |
Networking
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Cisco UCS Virtual Interface Card 1227, Intel I350 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | PXE support |
Dimensions & Weight
| Width | 17.6 in |
| Depth | 29.1 in |
| Height | 3.4 in |
Hard Drive
| Type | SSD - hot-swap |
| Capacity | 2 x 120 GB |
| Interface Type | SATA 6Gb/s |
Graphics Controller
| Graphics Processor | Matrox G200e |
| Video Memory | 8 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Storage Controller
| Type | RAID - PCIe 3.0 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6 |
| Buffer Size | 2 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | Backplane |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 24 |
Processor / Chipset
| Chipset Type | Intel C612 |
Expansion / Connectivity
| Bays | 24 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 0 (free) x CPU ¦ 24 (total) / 8 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x24 - three-quarter-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x24 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode) ¦ 2 (total) / 1 (free) x SD card |
| Interfaces | 2 x USB 3.0 (2 rear) ¦ 1 x VGA (1 rear) ¦ 1 x serial - RJ-45 (1 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x management (NIC) - RJ-45 (1 rear) ¦ 1 x KVM (1 in front) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 230 V (50/60 Hz) |
| Voltage Required | AC 230 V (50/60 Hz) |
| Power Provided | 1400 Watt |
RAM
| Installed Size | 256 GB / 1536 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 8 (empty) |
| Features | Single rank |
| Configuration Features | 16 x 16 GB |
| RAM Supported | PC4-19200 - 768 GB registered - ECC ¦ PC4-19200 - 1536 GB Load-Reduced - ECC |
Optical Storage
| Type | No optical drive |
