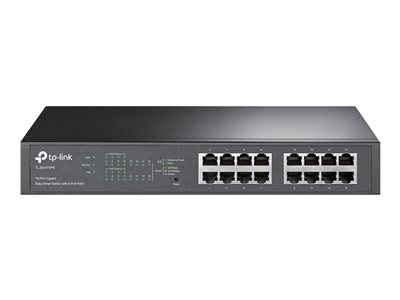

TP-Link Easy Smart TL-SG1016PE - switch - 16 ports - smart - rack-moun
TP-Link Easy Smart TL-SG1016PE - switch - 16 ports - smart - rack-moun
- Price:
$142.99
- Availability:
- Mfr #: TL-SG1016PE
- UNSPSC #: 43222612
- Item #: 004944219
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | FCC |
Dimensions & Weight
| Width | 11.6 in |
| Depth | 7.1 in |
| Height | 1.7 in |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
General
| Device Type | Switch - 16 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 8 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 110 W |
| Performance | Forwarding performance: 23.8 Mpps ¦ Switching capacity: 32 Gbps |
| Capacity | Virtual interfaces (VLANs): 128 ¦ IGMP snooping groups: 128 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, Cable Diagnostics Function, loop prevention, metal housing, DSCP support, Storm Control, PoE management, Link Aggregation |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at |
Expansion / Connectivity
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 8 x 1000Base-T RJ-45 |
Power
| Voltage Required | AC 120/230 V (50/60 Hz) |
