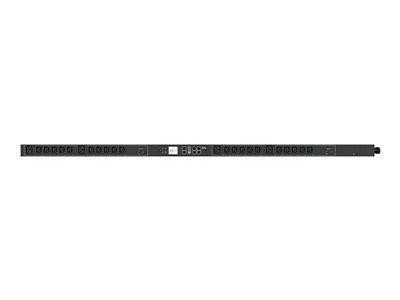

1PH 208V 24A 20XC13 4XC19 L6-30P 5.0KVA 0U
1PH 208V 24A 20XC13 4XC19 L6-30P 5.0KVA 0U
- Price:
$2,015.99
- Availability:
- Mfr #: PX3-4497V-E2
- UNSPSC #: 39121017
- Item #: 004957641
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 10 ft |
| Features | Voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, metering per input line, locking outlets, 2 x LEGBXA66-20 overload protection |
| Compliant Standards | ICES-003, FCC, RoHS, FCC Part 15 A |
Networking
| Remote Management Interface | Ethernet 10/100, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
Dimensions & Weight
| Width | 2 in |
| Depth | 2.8 in |
| Height | 60.6 in |
| Weight | 13.01 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
Environmental Parameters
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
General
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Color | Black powder coat |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L6-30P |
| Power Output Connectors Details | 20 x power IEC 60320 C13 - 208 V 12 A ¦ 4 x power IEC 60320 C19 - 208 V 16 A |
| Max Electric Current | 30 A |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x Gigabit LAN - RJ-45 ¦ 1 x LAN - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x sensor - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x cascading - RJ-45 |
Dimensions & Weight (Shipping)
| Shipping Width | 11 in |
| Shipping Depth | 4.5 in |
| Shipping Height | 73.4 in |
| Shipping Weight | 17.86 lbs |
