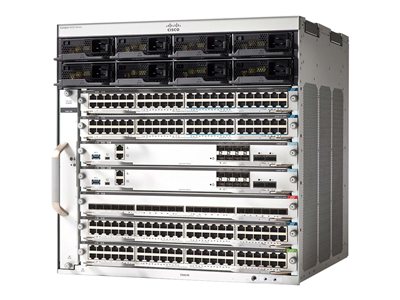

Cisco Catalyst 9400 Series Line Card - switch - 48 ports - plug-in mod
Cisco Catalyst 9400 Series Line Card - switch - 48 ports - plug-in mod
- Price:
$15,869.99
- Availability:
- Mfr #: C9407R-96U-BNDL-E
- UNSPSC #: 43222612
- Item #: 005036604
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| MTBF | 1,571,010 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 50121-4, EN 300 386 V1.6.1, ETSI 300 019, EN 55022 Class A, EN 300 386, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.2, KN35, KN32 Class A, EN 55032 Class A, SR-3580 NEBS Level 3, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, IEEE 802.3, CNS13438:2006 Class A |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 16.3 in |
| Height | 17.4 in |
| Weight | 63.01 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
General
| Flash Memory | 10 GB |
| Built-in Devices | 240 GB SSD |
Expansion / Connectivity
| Interfaces | 96 x 1000Base-T RJ-45 UPOE+ |
| Expansion Slots | 5 (total) / 3 (free) x line-card slot ¦ 2 (total) / 1 (free) x supervisor slot |
| Installed Modules Qty (Max) | 3 (installed) / 7 (max) |
Power
| Power Device | Internal power supply (not installed) - hot-plug |
| Installed Qty | 8 (max) |
| Max Supported Qty | 8 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+N (with optional power supply) |
Software / System Requirements
| OS Required | Cisco IOS XE 16.12 |
