TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet's reliable cloud service.

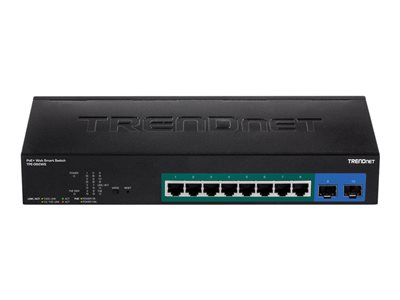

- Product Description TRENDnet TPE 082WS - switch - 10 ports - rack-mountable - TAA Compliant
- Device Type Switch - 10 ports
- Enclosure Type Rack-mountable 1U
- Subtype Gigabit Ethernet
- Ports 10 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
- Power Over Ethernet (PoE) PoE+
- PoE Budget 75 W
- Performance Forwarding performance (64-byte packet size): 14.9 Mpps ¦ Switching fabric bandwidth: 20 Gbps
- Capacity IPv6 routes (static): 256 ¦ VLAN IDs: 4094 ¦ Multicast entries (IPv4): 256 ¦ Maximum TCP/UDP sessions: 65535 ¦ MAC address entries: 8000
- MAC Address Table Size 8K entries
- Jumbo Frame Support 10KB
- Remote Management Protocol SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Features IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Virtual Cable Test (VCT) technology, DHCP snooping, Quality of Service (QoS), MLD snooping, fanless, LACP support, LLDP support, Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), Loopback, Denial of Service (DoS), Duplicated Address Detection, per port bandwidth control, DiffServ Code Point (DSCP) support, power-saving mode, Head of Line Blocking Prevention, TCP/UDP port setting, Static Link Aggregation, Voice VLAN, VLAN management, Private VLAN
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3at, IEEE 802.3az
- Power AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH) 11 in x 5 in x 1.7 in
- Weight 32.45 oz
- TAA Compliant Yes
- Manufacturer Warranty Limited lifetime warranty
|
