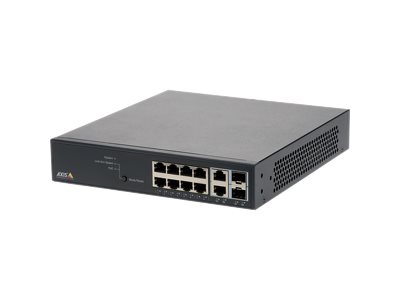

Axis T8508 - switch - 8 ports - managed - rack-mountable
  • Price:
    $498.99
« Back

Axis T8508 - switch - 8 ports - managed - rack-mountable

Axis T8508 - switch - 8 ports - managed - rack-mountable

  • Price:
    $498.99
  • Availability:
  • Mfr #:  01191-004
  • UNSPSC #:  24102001
  • Item #:  005195896
  • Add to Shopping List
  • cnet cat code #:  10061609
Need Help? Contact Zones Online support at 800.408.9663
Compatibility Information
Designed For AXIS A1610-B, C1410, D3110, M3067-P, M3068-P, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, W400 ¦ AXIS Camera Station S1216 Recording Server, S1232, S1296
Miscellaneous
Color Black
Included Accessories 4 rubber feet, drill template
Rack Mounting Kit Optional
Compliant Standards SASO, EN55024, JATE, ICES-003 Class A, FCC Part 15 B Class A, VCCI Class A, EAC, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1
Localization United States
Dimensions & Weight
Width 8.7 in
Depth 9.5 in
Height 1.7 in
Weight 4.63 lbs
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature 14 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 95% (non-condensing)
General
Device Type Switch - 8 ports - managed
Enclosure Type Desktop, rack-mountable
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 130 W
Performance Throughput: 14.9 Mpps ¦ Switching capacity: 20 Gbps
MAC Address Table Size 8K entries
Jumbo Frame Support 9216 bytes
Routing Protocol IGMP
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SMTP
Features DHCP support, ARP support, VLAN support, IPv6 support, IP address filtering, surge protection, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, IPv4 support, fanless, LLDP support, NAC, 802.1x authentication, BPDU, ICMP, NTP, LLDP-MED, Private VLAN, HTTPS encryption
Compliant Standards IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, UPnP
Expansion / Connectivity
Interfaces 8 x 10/100/1000 Base-T RJ-45 PoE+ / uplink - 30 W ¦ 2 x RJ-45/SFP
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
