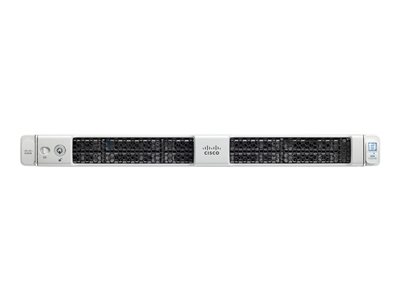

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the 24 DIMM slots for 2666 MHz DIMMs, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card. The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports. The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Product Description Cisco UCS SmartPlay Select C220 M5SX - rack-mountable - Xeon Gold 5120 2.2 GHz - 64 GB - no HDD
- Type Server - rack-mountable
- Height (Rack Units) 1U
- Server Scalability 2-way
- Processor 2 x Intel Xeon Gold 5120 / 2.2 GHz (14-core)
- Cache Memory 38.5 MB L3 cache
- Cache Per Processor 19.25 MB
- RAM 64 GB DDR4 SDRAM - ECC - PC4-21300
- Storage Controller RAID (SAS 12Gb/s)
- Server Storage Bays Hot-swap 2.5"
- Hard Drive No HDD
- Optical Storage No optical drive
- Graphics Controller ASPEED Pilot 4
- Video Memory 16 MB
- Networking GigE, 10 GigE
- Power AC 120/230 V (50 - 60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 16.9 in x 29.8 in x 1.7 in
- Manufacturer Warranty Limited warranty - replacement - 3 years - response time: next business day
|
