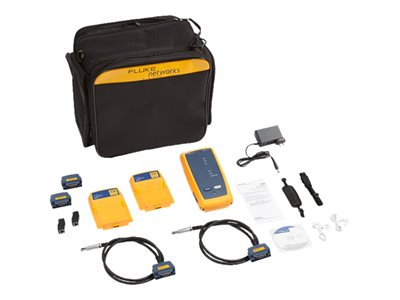

Fluke DSX CableAnalyzer DSX2-8000-ADD-R - network tester kit
Fluke DSX CableAnalyzer DSX2-8000-ADD-R - network tester kit
- Price:
$20,857.99
- Availability:
- Mfr #: DSX2-8000-ADD-R
- UNSPSC #: 27113203
- Item #: 005379823
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Battery
| Technology | Lithium ion |
| Voltage | 7.2 V |
| Run Time (Up To) | 8 hour(s) |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% |
| Max Altitude Operating | 13120 ft |
General
| Device Type | Network tester kit |
| Kit Content | Versiv Remote, 2 x DSX-8000 CableAnalyzer Module |
| Media | Copper |
| Features | Shock-absorbing, automatic overcurrent protection, 1-year calibration period, automatic overvoltage protection |
| Tests, Tools and Measurements | Length, wiremap, attenuation-to-crosstalk ratio far end, return loss, delay skew between pair, propagation delay, DC loop resistance, insertion loss (attenuation), power sum, full 2-way autotest |
| Cable Types | CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8 |
| Software | Versiv Open Source Software |
| Included Accessories | Carrying case, 2 x AC power adapters, 2 x headsets, 2 x shoulder straps, 2 x hand straps, 2 x universal couplers, 2 x CAT 8/Class I channel adapters, 2 x CAT 8/Class I permanent link adapters, 2 x AxTalk terminators |
| Cables Included | 2 x RJ-45 coupler |
| Connectors | RJ-45 |
| Compliant Standards | CSA, EN 61326-1 |
| Test Standards | ISO/IEC 61935-1 Level-IV, TIA-568-C.2, TIA-1152, ISO/IEC 11801 |
| Warranty | 1 year |
