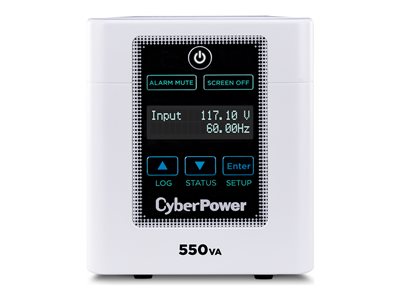

CyberPower Medical Grade M550L - UPS - 440 Watt - 550 VA - lead acid - 7 Ah
CyberPower Medical Grade M550L - UPS - 440 Watt - 550 VA - lead acid - 7 Ah
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 6 ft |
| Equipment Protection Value | 400000 US Dollars |
| Features | Audible alarm, LED display, Automatic Voltage Regulation (AVR), overload protection, Enhanced Battery Management (EBM) |
| Compliant Standards | CSA, UL 1778, UL 60601-1, RoHS, FCC Part 15 A, EMI |
Networking
| Remote Management Interface | USB, serial |
Dimensions & Weight
| Width | 6.4 in |
| Depth | 13.7 in |
| Height | 5.4 in |
| Weight | 30.2 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Battery
| Quantity | 2 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Run Time (Up To) | 52.2 min at 112 Watts ¦ 25 min at half load ¦ 24.5 min at 225 Watt ¦ 8 min at full load |
| Recharge Time | 8 hours |
| Transfer Time | 10 ms |
| Switchover Time | 10 ms |
| Features | Sealed |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
General
| Device Type | UPS - external |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 90 - 150 V |
| Input Voltage Range (Adjustable) | AC 88 - 150 V |
| Frequency Required | 60 Hz ± 3Hz |
| Input Connectors | Power NEMA 5-15P (hospital grade) |
| Power Output Connectors Details | 4 x power NEMA 5-15R (hospital grade) |
| Output Voltage | AC 120 V ± 5% |
| Power Capacity | 440 Watt / 550 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1445 Joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 0.8 |
Expansion / Connectivity
| Interfaces | 1 x USB - 4 pin USB Type B ¦ 1 x serial - 9 pin D-Sub (DB-9) |
