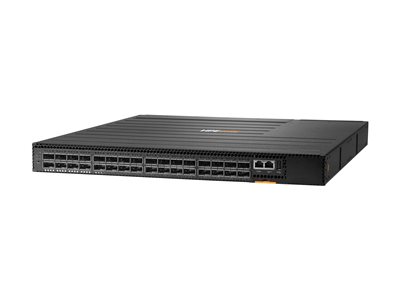

HPE Aruba 8320 - switch - 32 ports - managed - rack-mountable - TAA Compliant - with X472 5 Fans 2 Power Supply
HPE Aruba 8320 - switch - 32 ports - managed - rack-mountable - TAA Compliant - with X472 5 Fans 2 Power Supply
- Price:
$26,770.75
- Availability:
- Mfr #: JL579A#ABA
- UNSPSC #: 43222600
- Item #: 005650168
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 296526 hours |
| Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, UL 60950-1, WEEE, AS/NZS, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, ICES-003 issue 5, Directive 2014/35/EU, EN 55032:2015, IEC 60825-1:2007 Class 1, CISPR 32:2015 Class A, CISPR 32 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| TAA Compliant | Yes |
| Localization | English / United States |
Dimensions & Weight
| Width | 17.2 in |
| Depth | 20.3 in |
| Height | 1.7 in |
| Weight | 21.38 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
General
| Device Type | Switch - 32 ports - L3 - managed - with X472 5 Fans 2 Power Supply |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 32 x 40 Gigabit QSFP+ |
| Performance | Switching capacity: 2.5 Tbps ¦ Forwarding performance: 1.905 Mpps |
| Capacity | Virtual interfaces (VLANs) per port for 802.1q: 4096 |
| MAC Address Table Size | 14K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP |
| Encryption Algorithm | FIPS 140-2 |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | VPN support, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, Bridge protocol data unit (BPDU), Multi-Chassis Link Aggregation (MLAG), Protocol Independent Multicast (PIM) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX |
| Processor | 1: 2 GHz |
| RAM | 16 GB |
| Flash Memory | 8 MB |
Expansion / Connectivity
| Interfaces | 32 x 40Gbit LAN QSFP+ ¦ 1 x serial RJ-45 ¦ 1 x console (micro-USB) ¦ 1 x RJ-45 |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 400 Watt |
| Voltage Required | AC 120/230 V (50/65 Hz) |
| Power Consumption Operational | 310 Watt |
