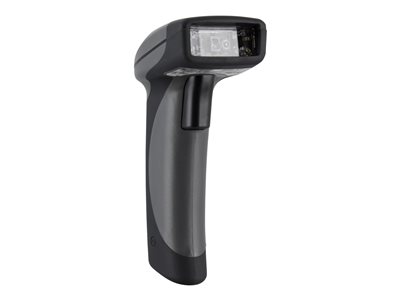

CR1500 2D DKGRAY CODESHIELD NO CAB/PS
CR1500 2D DKGRAY CODESHIELD NO CAB/PS
- Price:
$234.99
- Availability:
- Mfr #: CR1500-K203-CX
- UNSPSC #: 43211701
- Item #: 005674965
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | No data cable is included |
| Compliant Standards | IP54, FCC, RoHS, WEEE |
Dimensions & Weight
| Width | 2 in |
| Depth | 3 in |
| Height | 5.2 in |
| Weight | 4.09 oz |
Barcode
| Interface Type | Interface cable required |
| Minimum Bar Width | 3 mil |
| Scan Element Type | CMOS |
| Sensor Resolution | 1280 x 960 |
| Max Working Distance | 12.9 in |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | BC 412, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI-Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic Code, UPC/EAN/JAN Composites, Codablock F, Code 49, CC-A, CC-B, CC-C, MicroPDF417, PDF417, Aztec code, Data Matrix Rectangular Extension, Grid Matrix Code, Han Xin, MaxiCode, Micro QR code, QR code, QR Model 1, Australian Post, Canadian Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, Korea Post, Postnet, PLANET, Royal Mail, UPU ID-tags |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Rugged |
Environmental Parameters
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 6 ft to concrete |
General
| Type | Barcode scanner - handheld |
| Color | Dark gray |
Power
| Power Device | No power supply |
